Braided and spiral reinforcement
Wire-braided 2SN and multi-spiral 4SP / 4SH / R12 assemblies selected for operating pressure and impulse demand.
HOSE SELECTION / ASSEMBLY PLANNING
EN 853 / EN 856 / SAE 100R
ISO 3862
Dedicated Hydraulic Hose Manufacturer
High-pressure hose assemblies, engineered to fit.
Select documented hose ratings, end connections and cut length to prepare a custom assembly enquiry for demanding hydraulic systems.
0reference hose families
0available nominal sizes
0C maximum reference temperature
Engineered assemblies
One focused factory. Every connection controlled.
Fittings matched to circuit
Metric, BSP, JIC, ORFS and flange ends with straight or elbow orientation built to your routing drawing.
Documented assembly workflow
Specify the required crimp dimension check, cleanliness control and pressure-test record with your order.
Interactive specification
Configure a hydraulic hose assembly
Adjust size, length and end connections. Your assembly preview and enquiry specification update instantly.

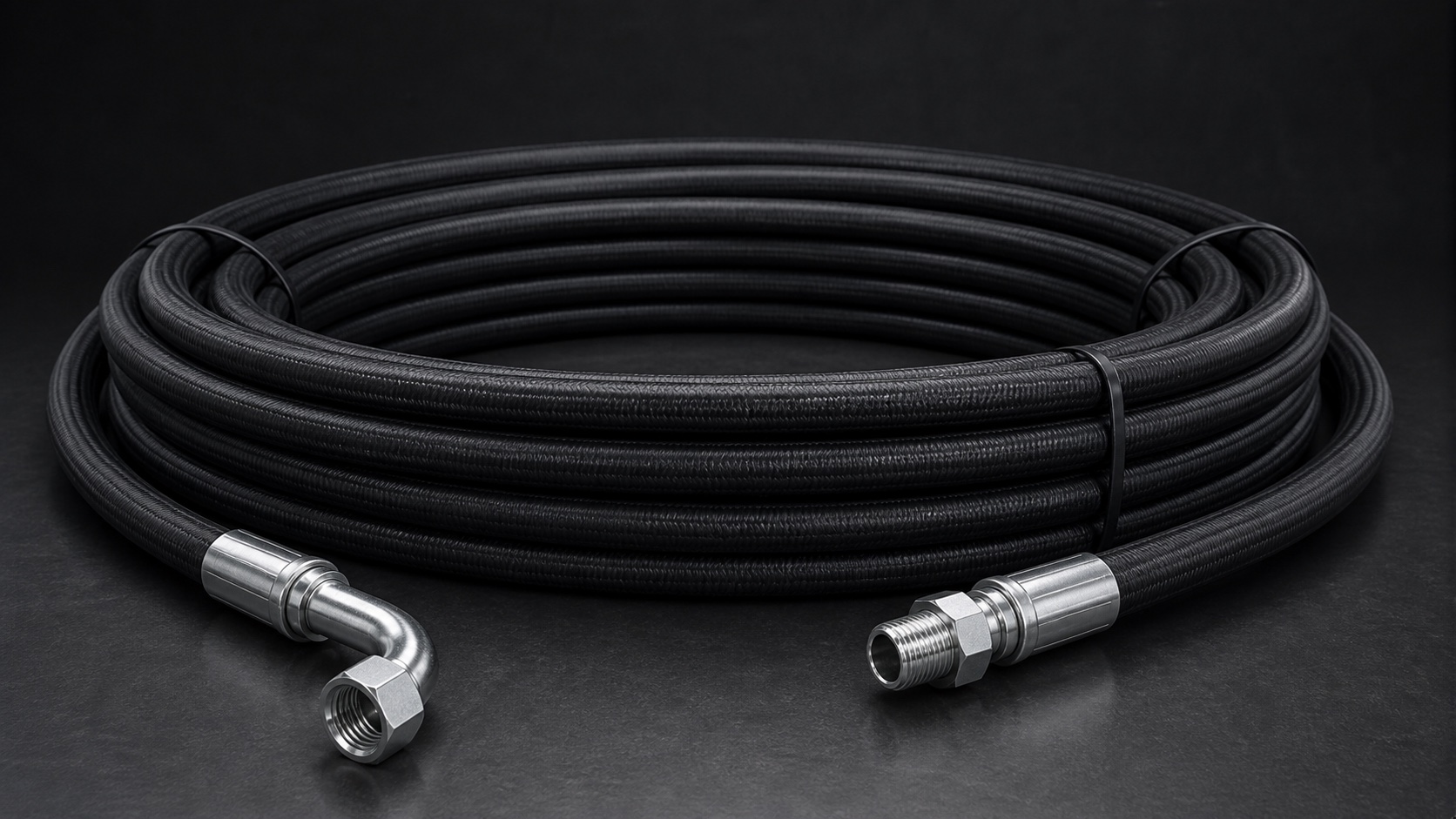

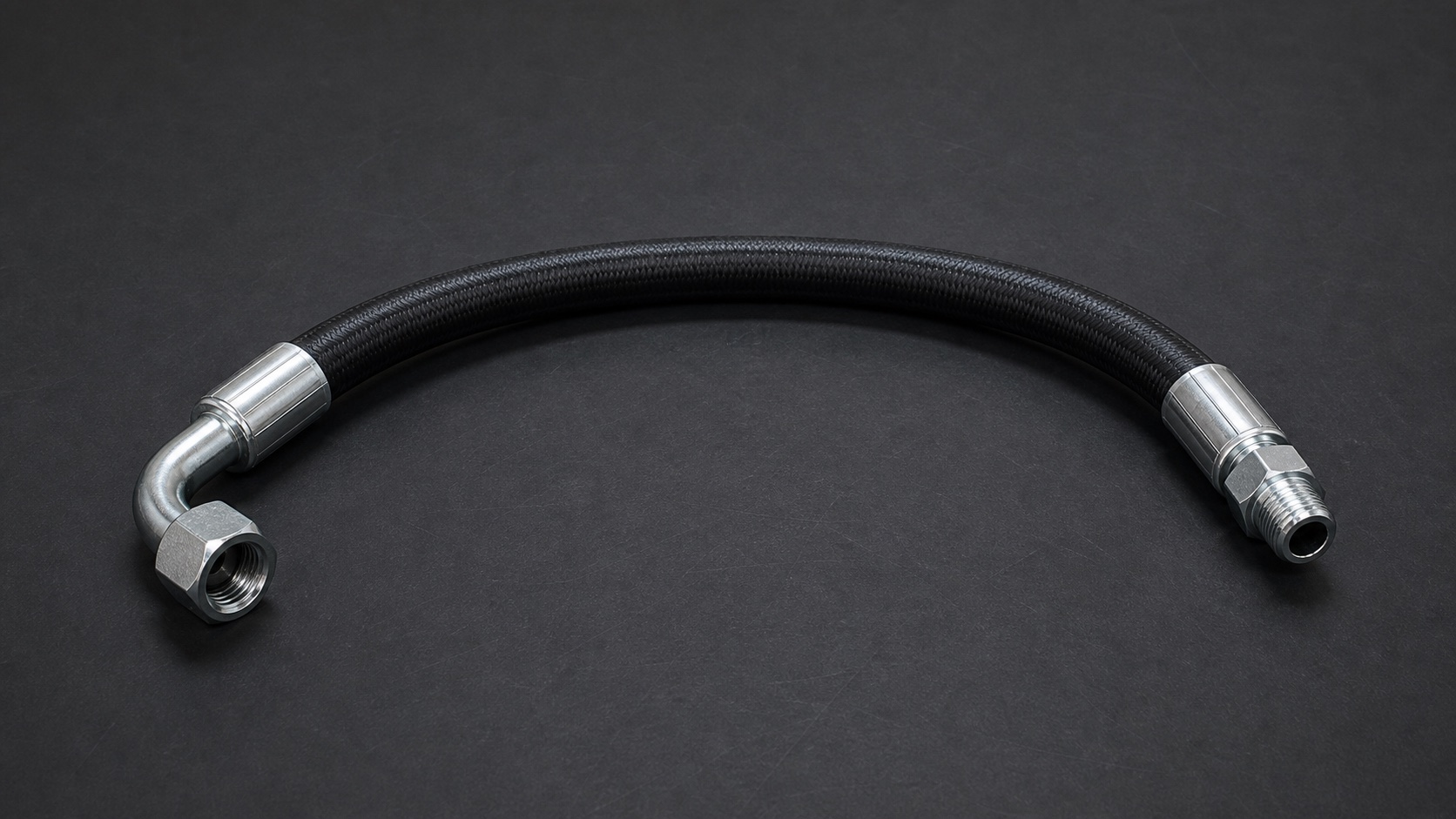

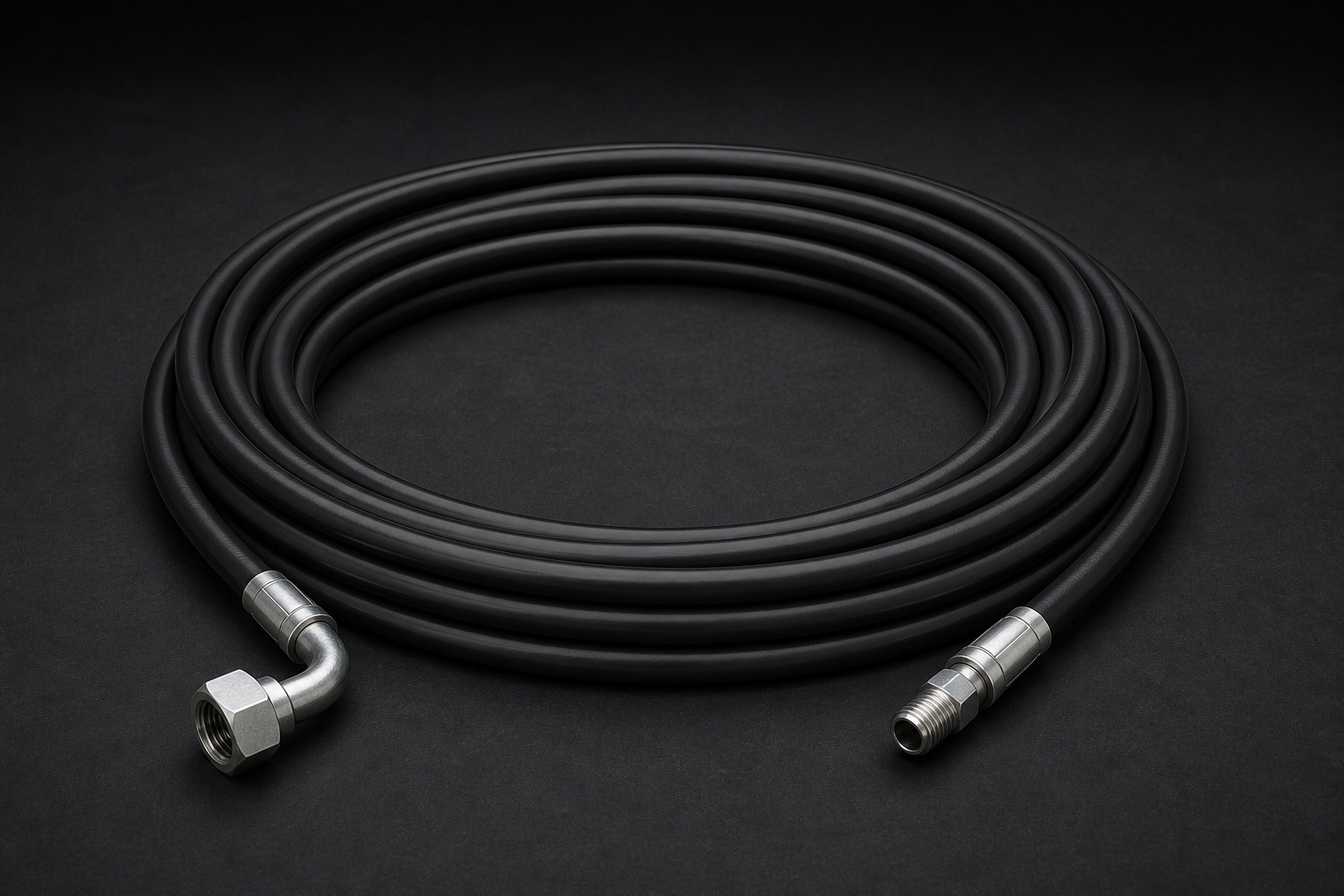

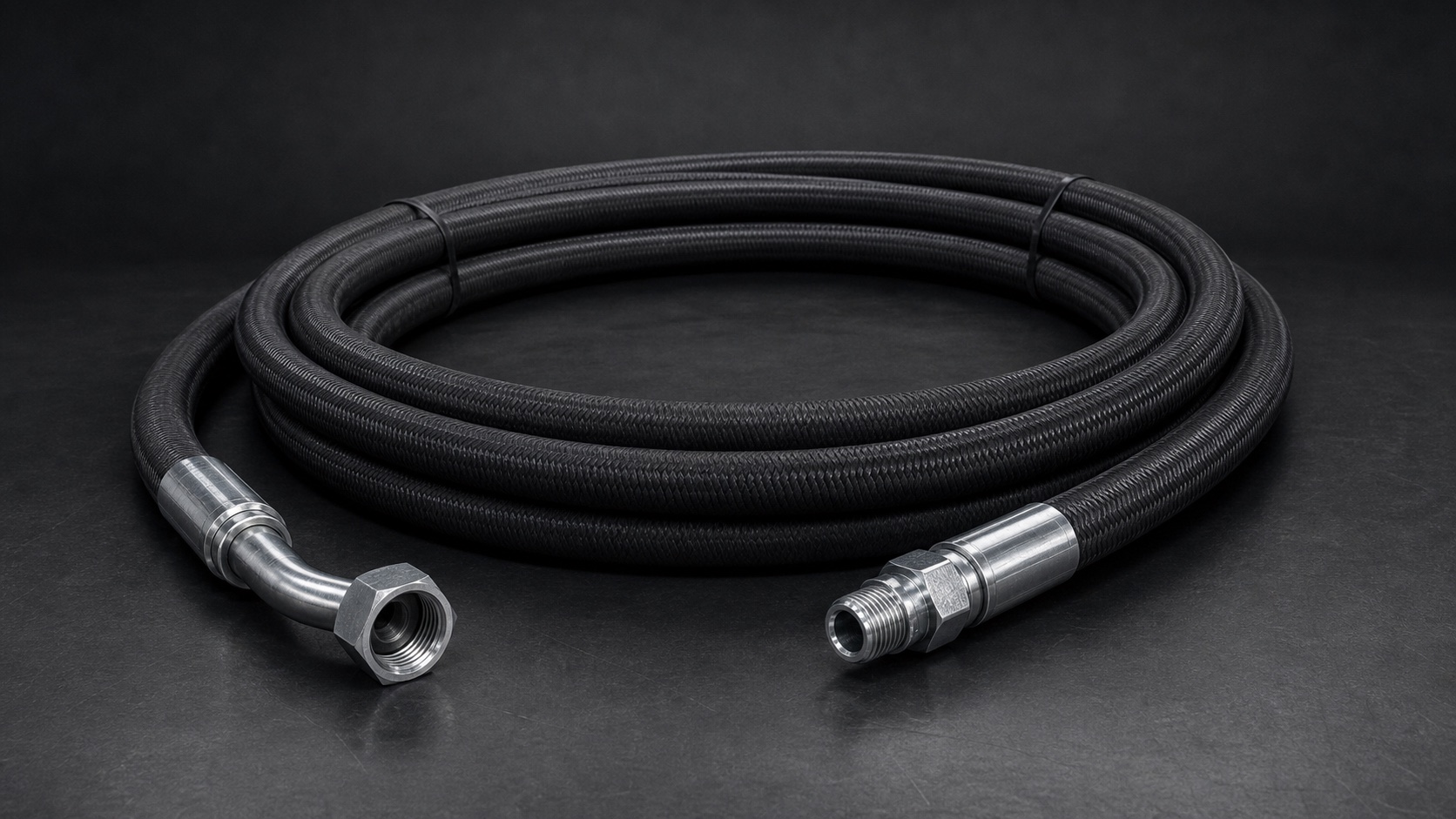

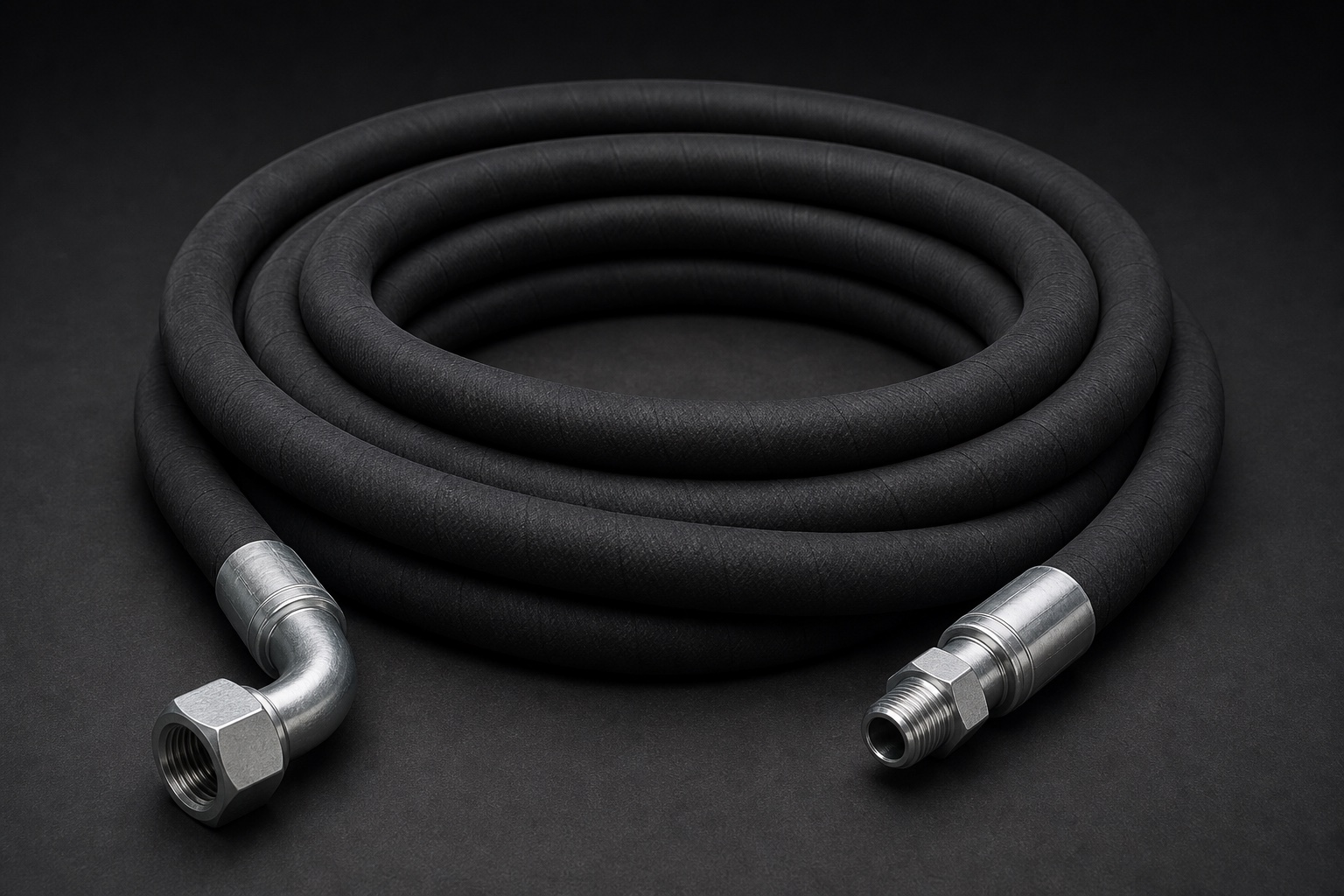

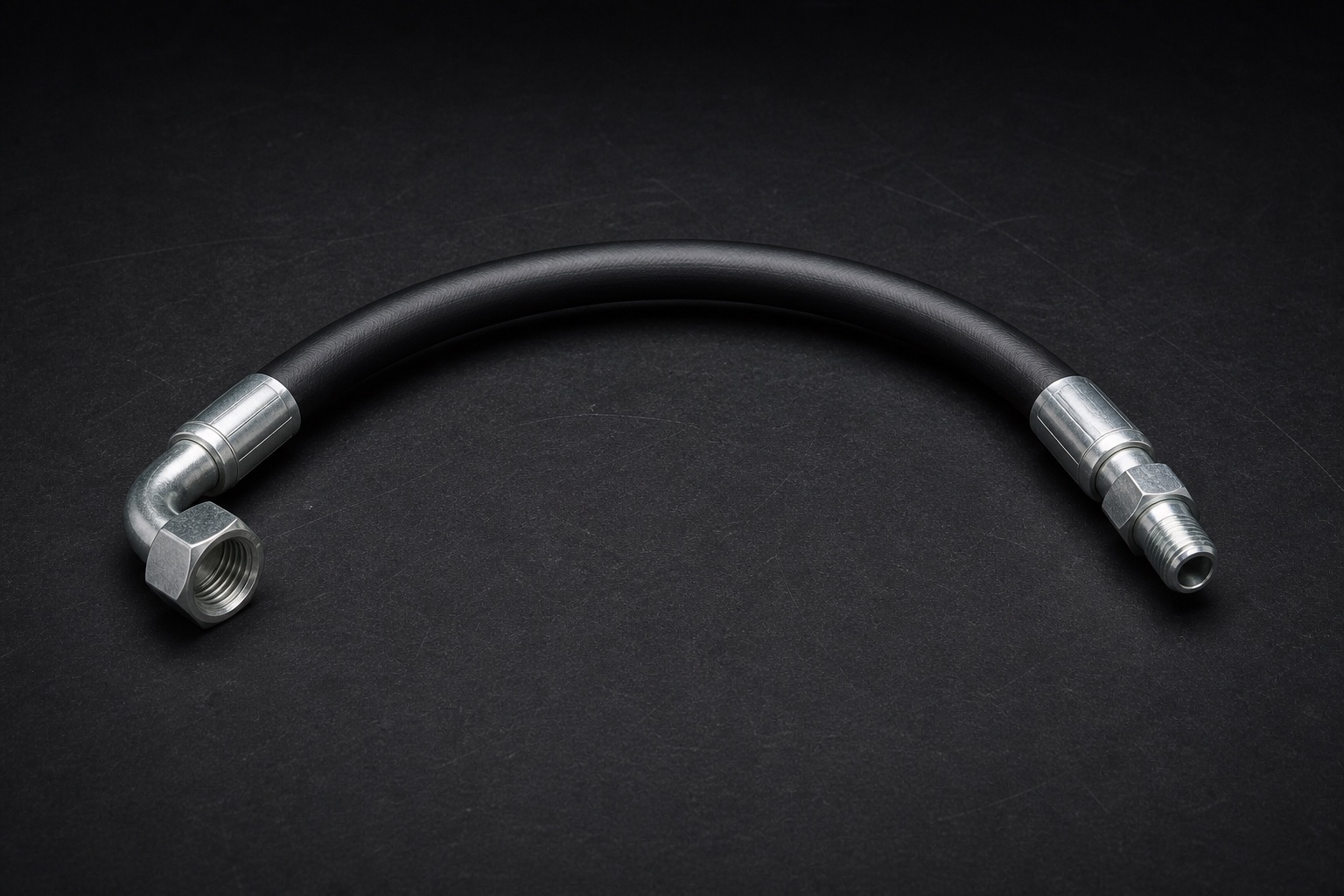

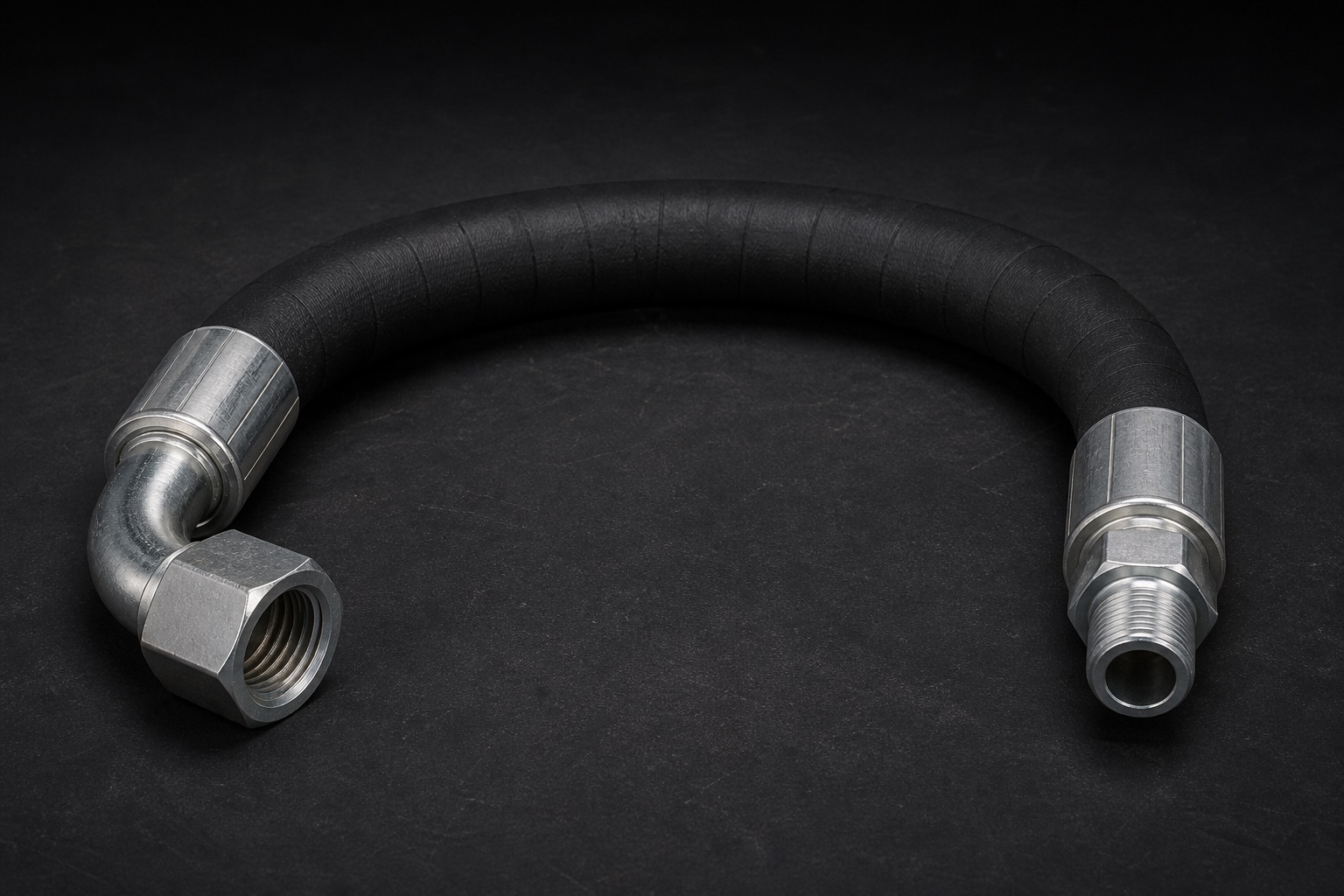

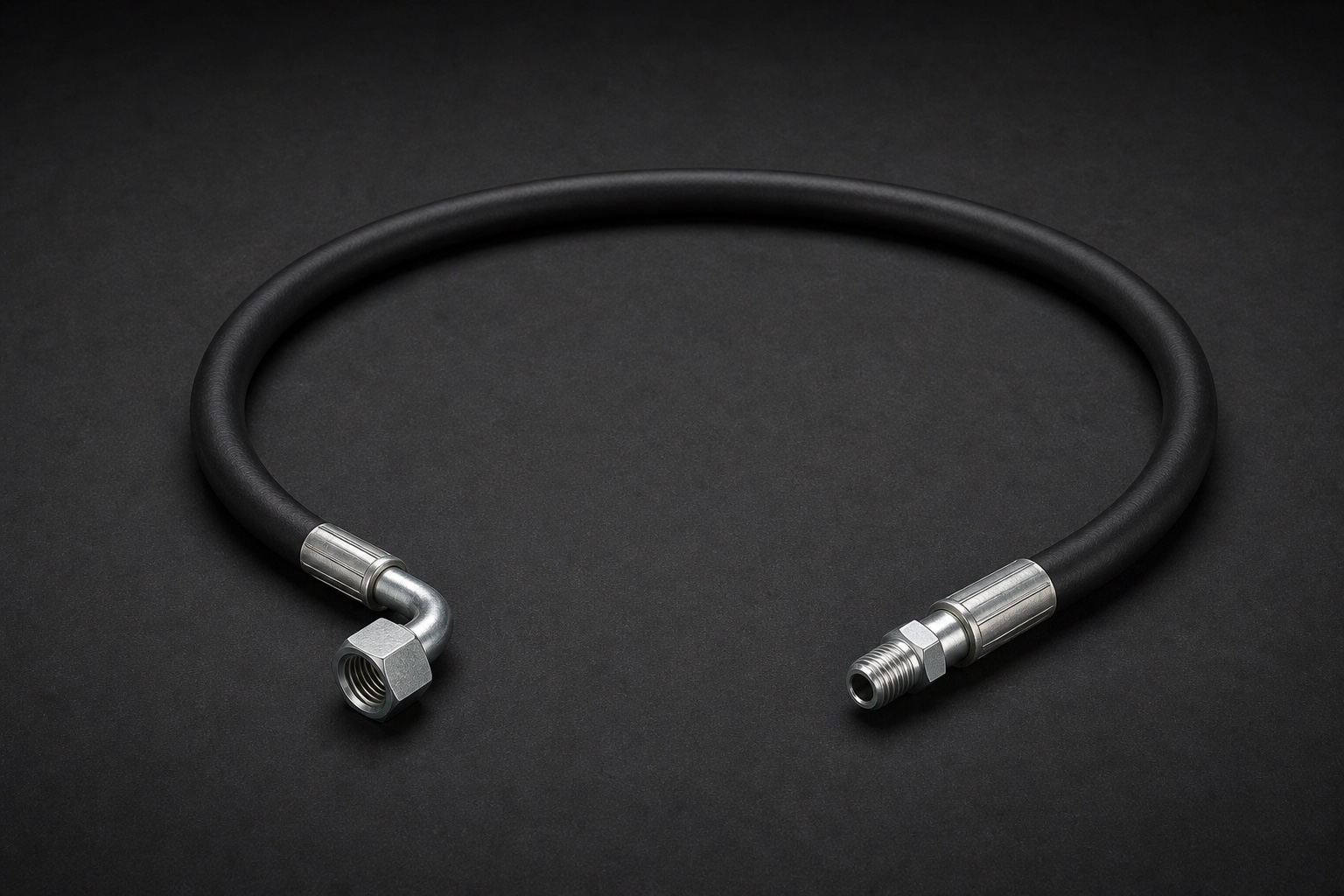

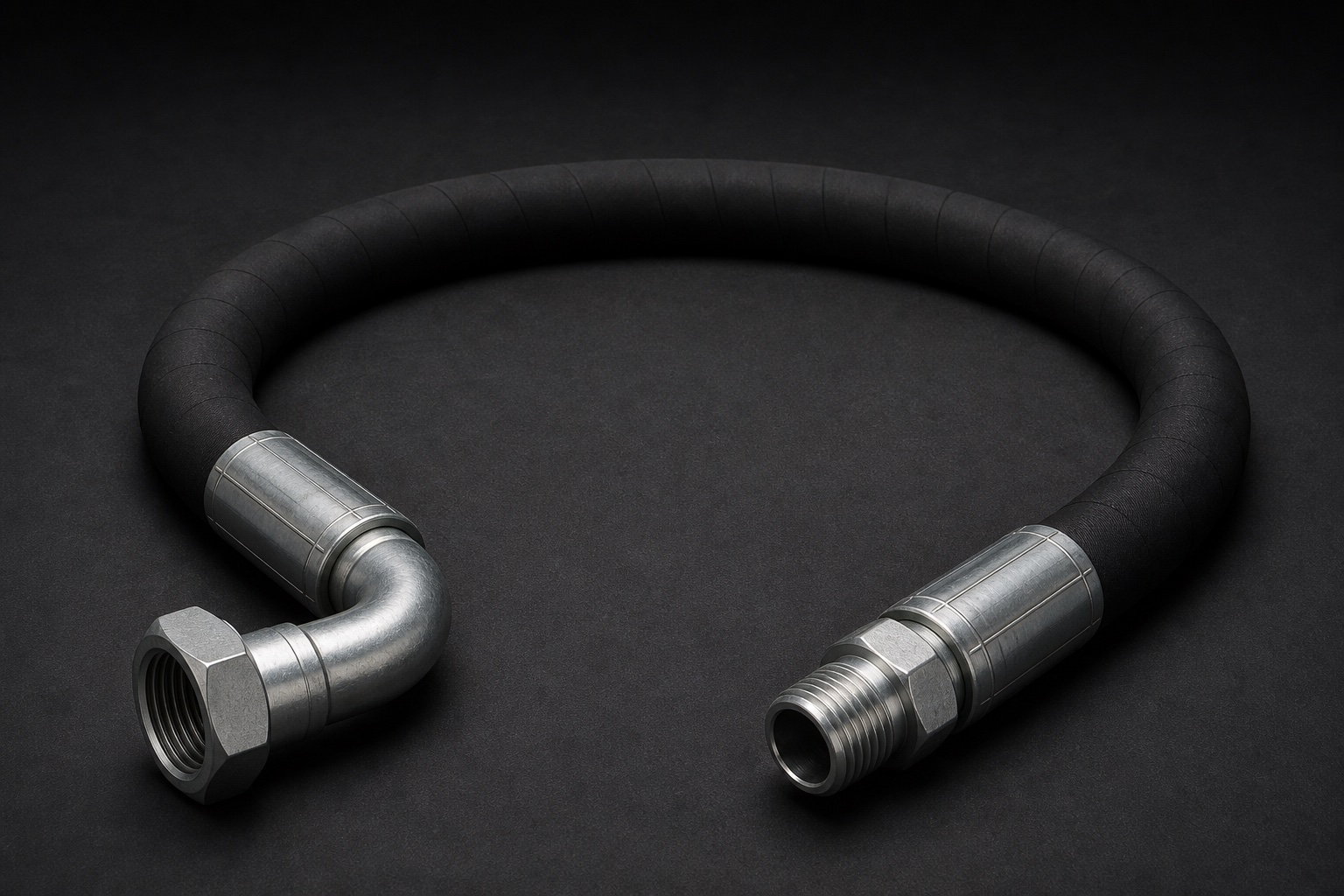

LIVE ASSEMBLY PREVIEW
AW-2SN-08-2000
Standard cover / no sleeve
Visual length stateShort assembly / 2.0 m
Hose boreDN13
End A shownJIC Female 90°
End B shownBSP Male Straight
Selection data
Technical specification for this configuration
Values update instantly as the hose family and nominal size change.
Configuration codeAW-2SN-08
Applicable standardEN 853 2SN / SAE 100R2AT
Reference working pressure27.5 MPa / 4000 psi
Reference min. burst pressure110 MPa / 16000 psi
Inside diameter12.7 mm / 1/2 in
Outside diameter22.2 mm
Min. bend radius180 mm
Weight0.67 kg/m
Temperature range-40 C to +100 C
Fitting selectionMatched crimp fitting set - verify crimp chart
Proposed inner tubeOil-resistant NBR synthetic rubber
Proposed reinforcementTwo high-tensile steel wire braids
Proposed coverAbrasion and weather-resistant synthetic rubber
Fluid compatibilityPetroleum-based hydraulic oils; water-glycol subject to compound approval
Typical applicationsGeneral mobile and industrial hydraulic return / pressure lines
Proposed construction summaryNBR inner tube; two high tensile steel wire braids; synthetic rubber cover.
Cut length2.0 m
Connection pairJIC / BSP
Performance, material and compatibility values shown are preliminary selection references for comparable standard hose construction, not a released Aerowing product certificate.
Final assembly rating must be confirmed against matched fittings, approved crimp specifications and testing for the supplied product.

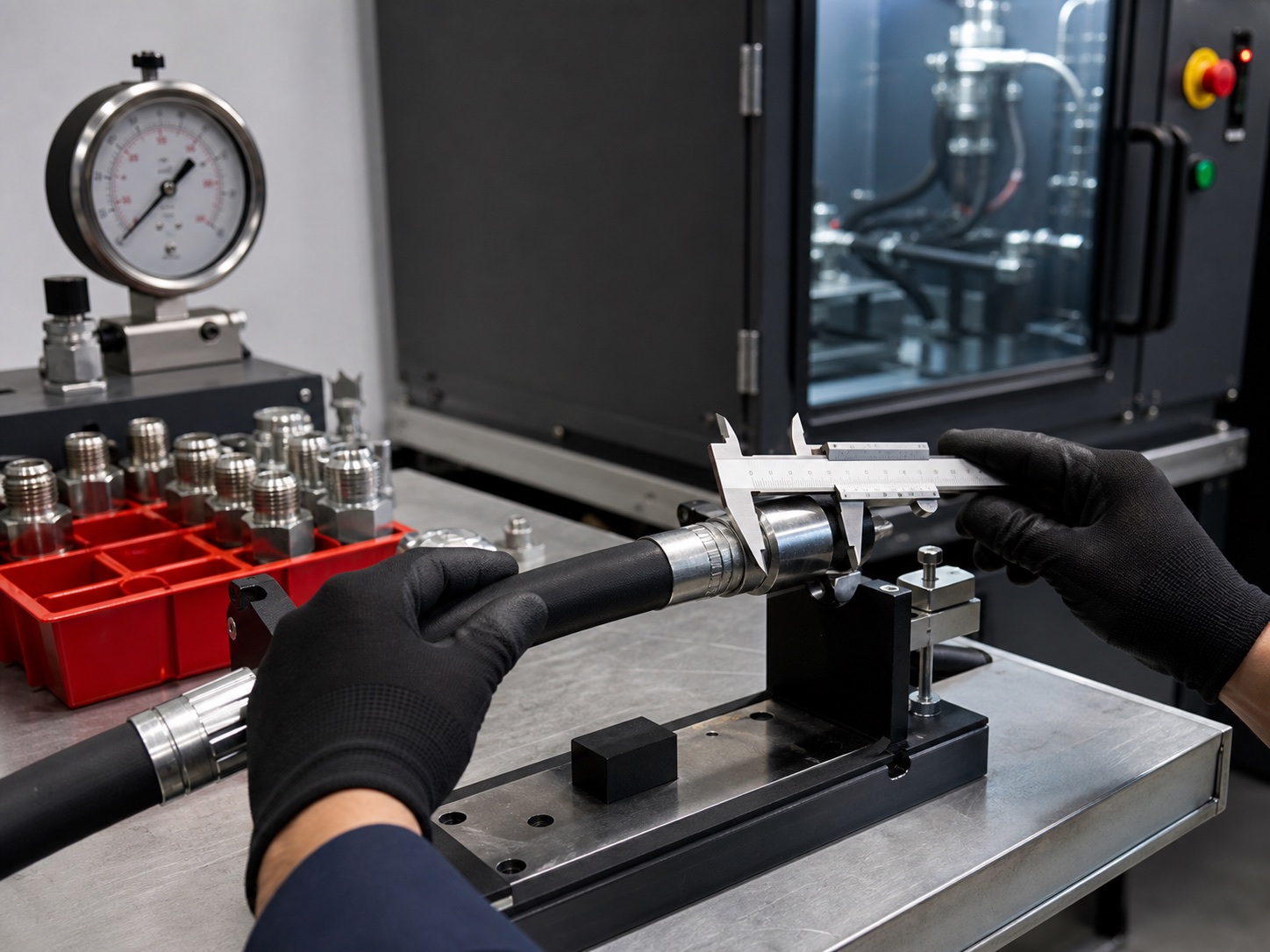

QCCrimp inspection capability
Production assurance
Specify measurement and pressure-test records with your order.
A supplied assembly should be confirmed through matched hose and fitting selection, correct crimp tooling and recorded inspection.
01Cut & clean
Accurate hose cut and internal cleanliness check.
02Crimp & measure
Controlled crimp diameter against fitting specification.
03Test & record
Request pressure-test and traceability records for your order.
Start a production request
Send your hose dimensions or hydraulic circuit drawing.
For a fast quotation, include pressure, media, temperature, connection type, length and expected quantity.
